Setting up 389 Directory Server

This is the first part of a series where I will share how I set up my local LDAP server that I use in my homelab, mainly for security testing.

In this part, I will cover the installation of a standalone replica.

Lab setup

Hostname	Role	Distribution
olympus	Jumphost	Fedora 44
ldapsrv	389 Directory Server	RHEL 9.7
generic	LDAP client	RHEL 9.7

Hosts:

echo "192.168.133.160 ldap.guerzon.net" | sudo tee -a /etc/hosts
echo "192.168.133.160 ldapsrv" | sudo tee -a /etc/hosts
echo "192.168.133.156 generic" | sudo tee -a /etc/hosts

Install

# RHEL 9 prerequisites: install EPEL
subscription-manager repos --enable codeready-builder-for-rhel-9-$(arch)-rpms
dnf install https://dl.fedoraproject.org/pub/epel/epel-release-latest-9.noarch.rpm

# Install the package from EPEL
dnf install 389-ds-base

# configure firewalld
firewall-cmd --add-service=ldap --permanent
firewall-cmd --add-service=ldaps --permanent
firewall-cmd --reload

Commands

• dsctl - manage the local instance. Stop, start, etc
• dsconf - manage local or remote instance config
• dsidm - manage content inside a backend, with idm focus

Configure

mkdir /opt/389-ds
chmod 0700 /opt/389-ds

cat << EOF > /opt/389-ds/instance.inf
[general]
config_version = 2

[slapd]
instance_name = homelab
root_dn = cn=manager
root_password = Sup3rSecureP@ssword
port = 3890
secure_port = 636
self_sign_cert = True

[backend-userroot]
sample_entries = yes
suffix = dc=guerzon,dc=net
require_index = yes
EOF

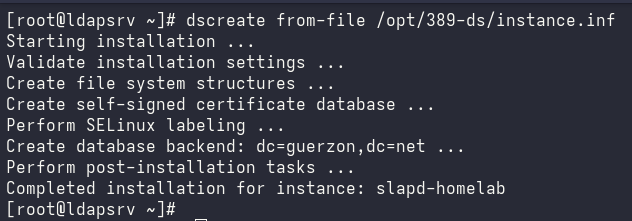

# create the instance
dscreate from-file /opt/389-ds/instance.inf

Local administration

Use local socket to interact with the instance w/o having to enter the manager password everytime.

cat << EOF > ~/.dsrc
[homelab]
uri = ldapi://%%2fvar%%2frun%%2fslapd-homelab.socket
basedn = dc=guerzon,dc=net
EOF

Some useful commands:

dsctl homelab status
systemctl status dirsrv@homelab

## config
ls -l /etc/dirsrv/slapd-homelab/

# change port
dsconf homelab config replace nsslapd-port=389
dsctl homelab restart

# change password of directory manager
dsconf homelab directory_manager password_change

Certificate

This section is to create CA, then a self-signed certificate that will be used as the server certificate and client certificate (for later).

Create a new root CA:

COUNTRY="PH"
LOCATION="Makati City"
ORGANIZATION="Homelab"

cd /opt/389-ds
openssl genrsa -out rootCA.key 4096
openssl req -x509 -new -nodes \
    -key rootCA.key -sha256 \
    -days 1825 \
    -subj "/C=${COUNTRY}/L=${LOCATION}/O=${ORGANIZATION}/CN=Homelab Root CA" \
    -out rootCA.pem

Config:

SAN="DNS:ldap.guerzon.net"
mkdir certs
cat /etc/pki/tls/openssl.cnf - <<-CONFIG > certs/ca-selfsign-ssl.cnf

[ san ]
subjectAltName="${SAN:-root@localhost.localdomain}"

[ cert_ext ]
keyUsage = digitalSignature, keyEncipherment
extendedKeyUsage = serverAuth, clientAuth
subjectAltName = ${SAN:-root@localhost.localdomain}
CONFIG

Generate the server key and certificate:

# generate key
openssl genrsa -out certs/ssl.key 4096

# generate csr
openssl req \
    -sha256 \
    -new \
    -key certs/ssl.key \
    -extensions cert_ext \
    -subj "/C=${COUNTRY}/L=${LOCATION}/O=${ORGANIZATION}/CN=ldap.guerzon.net" \
    -config certs/ca-selfsign-ssl.cnf \
    -out certs/ssl.csr

# sign cert (server and client certificate for mTLS)
openssl x509 -req -in certs/ssl.csr \
    -CA rootCA.pem -CAkey rootCA.key \
    -CAcreateserial \
    -days 2048 -sha256 -extensions cert_ext \
    -extfile certs/ca-selfsign-ssl.cnf \
    -out certs/ssl.crt

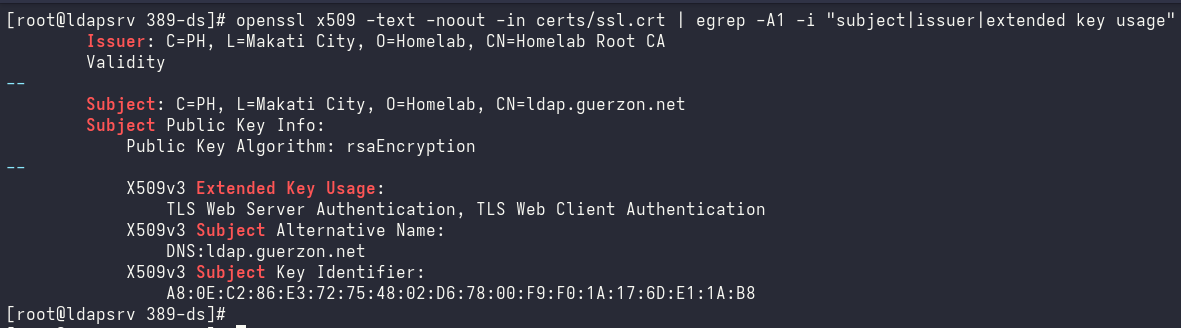

# verify
openssl x509 -text -noout -in certs/ssl.crt | egrep -A1 -i "subject|issuer|extended key usage"

Replace the current certificate;

# get the names and attributes of the default cert:
certutil -L -d /etc/dirsrv/slapd-homelab/ -f /etc/dirsrv/slapd-homelab/pwdfile.txt

# delete:
certutil -d /etc/dirsrv/slapd-homelab/ -n Server-Cert -f /etc/dirsrv/slapd-homelab/pwdfile.txt -D Server-Cert.crt
certutil -d /etc/dirsrv/slapd-homelab/ -n Self-Signed-CA -f /etc/dirsrv/slapd-homelab/pwdfile.txt -D Self-Signed-CA.pem

# add the new ssl certificate:
certutil -A -d /etc/dirsrv/slapd-homelab/ -n "Self-Signed-CA" -t "CT,," -i /opt/389-ds/rootCA.pem -f /etc/dirsrv/slapd-homelab/pwdfile.txt
certutil -A -d /etc/dirsrv/slapd-homelab/ -n "Server-Cert" -t ",," -i certs/ssl.crt -f /etc/dirsrv/slapd-homelab/pwdfile.txt

# convert from x509 to pkcs12:
openssl pkcs12 -export -out certs/ssl.pfx -inkey certs/ssl.key -in certs/ssl.crt -certfile /opt/389-ds/rootCA.pem

# add to the ssl database:
cat /etc/dirsrv/slapd-homelab/pin.txt | cut -d':' -f2-
pk12util -d /etc/dirsrv/slapd-homelab/ -i certs/ssl.pfx

# restart:
dsctl homelab restart

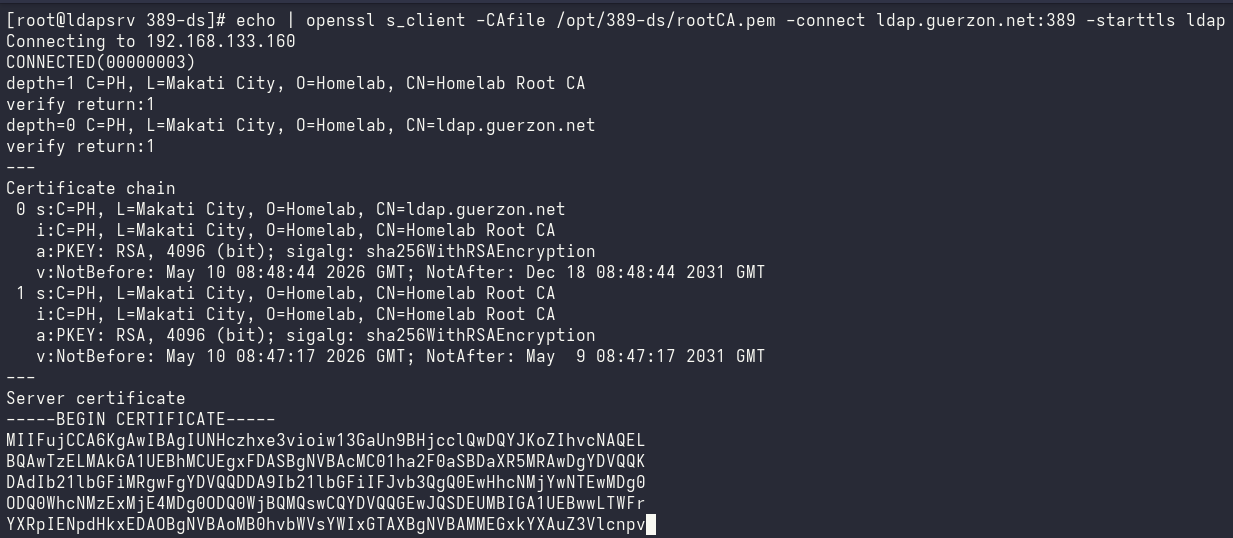

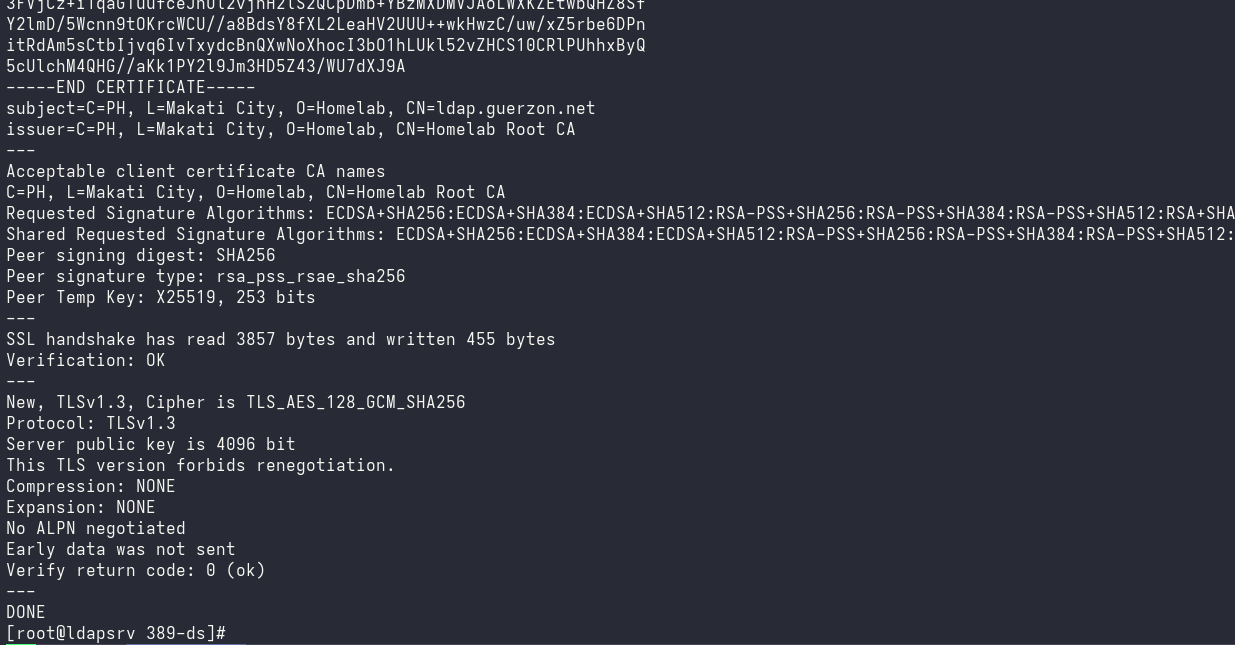

With openssl s_client, we can verify that the certificate works:

echo | openssl s_client -CAfile /opt/389-ds/rootCA.pem -connect ldap.guerzon.net:389 -starttls ldap

Administration

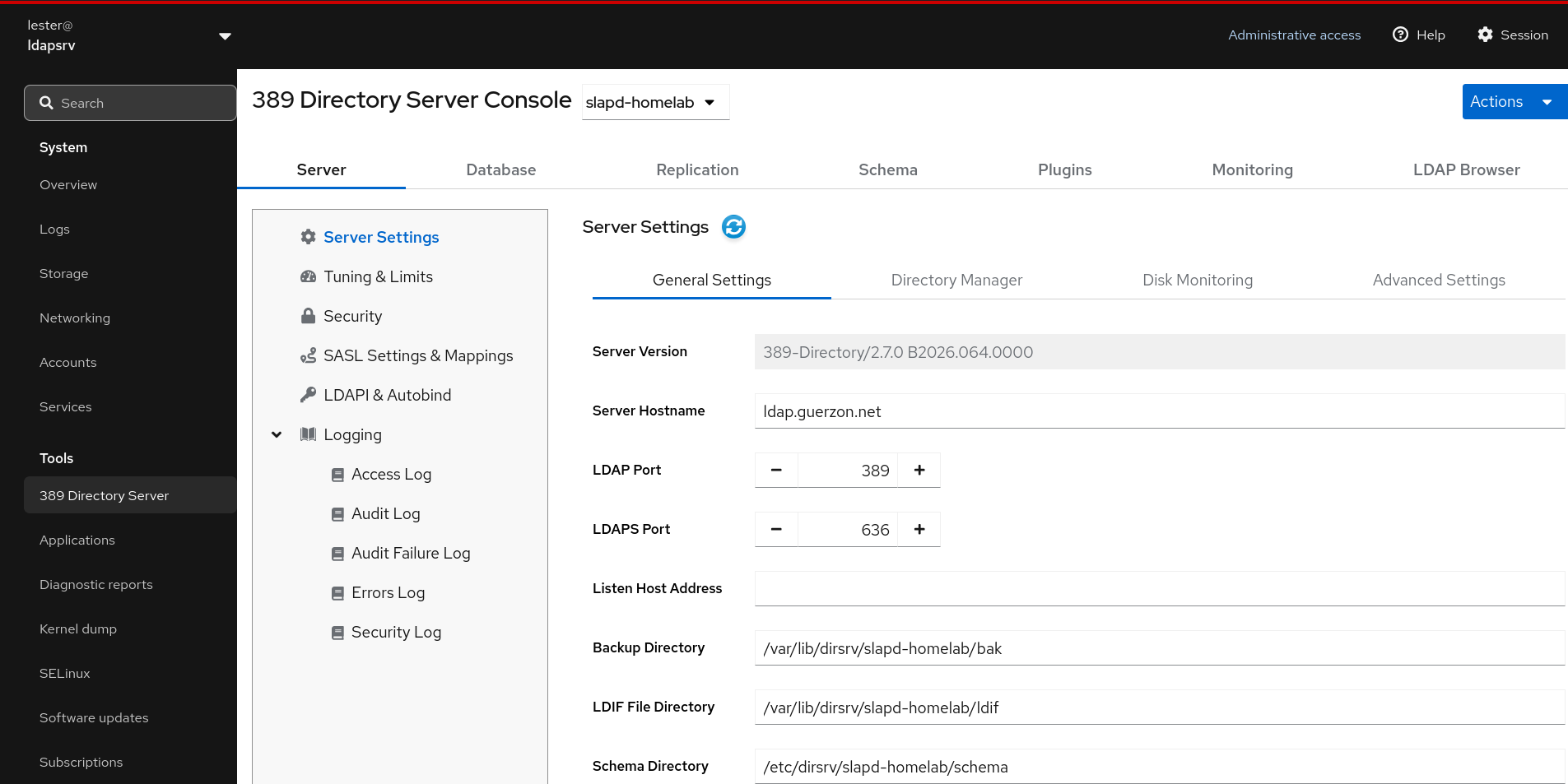

Cockpit UI

# enable the COPR repository to be able to install cockpit-389-ds:
dnf copr enable @389ds/389-directory-server
dnf install -y cockpit cockpit-389-ds
systemctl enable --now cockpit.socket

Cleanups

# remove the instance
dsctl homelab stop
dsctl homelab remove

# unwanted suffix
dsconf homelab backend delete testing --do-it

LDAP clients

Management from jumphost

I want to be able to run LDAP commands (such as ldapsearch) from my jumphost. So I have to configure the SSL certificate of the 389-ds server.

# login to olympus

# copy the root ca cert
scp ldapsrv:/opt/389-ds/rootCA.pem /tmp

# install ldap tools
sudo dnf install -y openldap-clients openssl-perl

# copy the root cert
sudo cp /tmp/rootCA.pem /etc/openldap/certs/

# hash it for openldap
sudo /usr/bin/c_rehash /etc/openldap/certs/

Also make sure to do the steps above on the generic machine because the certificate will be used by SSSD at a later section.

# ease of use
cat << EOF > ~/.ldaprc
URI ldaps://ldap.guerzon.net
BASE dc=guerzon,dc=net
TLS_CACERTDIR /etc/openldap/certs/
TLS_REQCERT demand
EOF

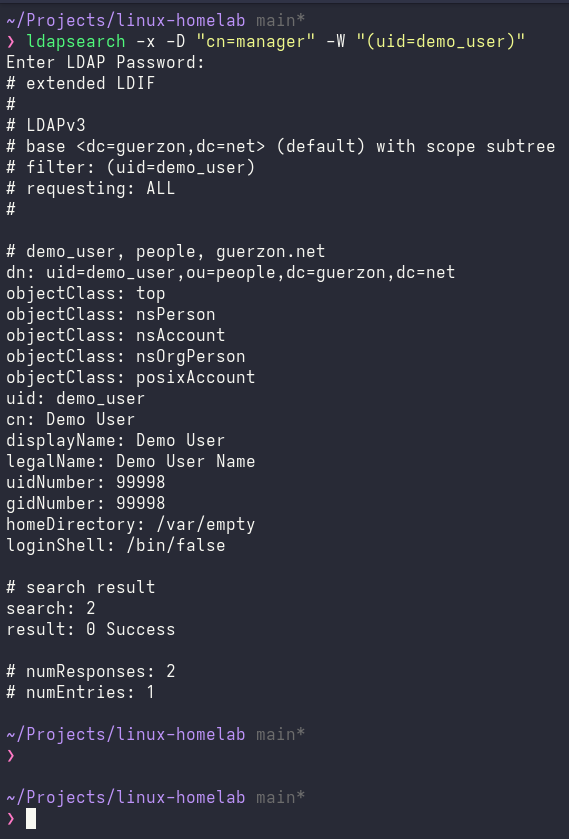

Test by querying the demo user that came with the installation:

ldapsearch -x -D "cn=manager" -W "(uid=demo_user)"

Read/only service account

Create a new service account with read-only access to everything. This will be used later.

In the 389-ds server:

dsidm homelab user create \
    --uid binduser \
    --uidNumber 1001 \
    --gidNumber 1001 \
    --homeDirectory /sbin/nologin \
    --cn binduser \
    --displayName binduser
dsidm homelab user get binduser
dsidm homelab account reset_password uid=binduser,ou=people,dc=guerzon,dc=net

We can also perform updates remotely. Run the following from the jumphost:

cat << EOF > binduser.ldif
dn: ou=people,dc=guerzon,dc=net
changetype: modify
add: aci
aci: (targetattr="*") (version 3.0; acl "Allow uid=binduser reading to everything";
 allow (search, read) userdn = "ldap:///uid=binduser,ou=people,dc=guerzon,dc=net";)
EOF

# apply
ldapmodify -D "cn=manager" -x -W -f binduser.ldif

User administration

Add the following test users:

• Users: alicia and roberto
• Group: empresarios, of which alicia is a member

Later, we will allow logins to the generic machine only for users who belong to the empresarios group.

# Create new users
dsidm homelab user create \
    --uid alicia --cn alicia --displayName Alicia \
    --uidNumber 1002 --gidNumber 1002 \
    --homeDirectory /home/alicia
dsidm homelab user create \
    --uid roberto --cn roberto --displayName Roberto \
    --uidNumber 1003 --gidNumber 1003 \
    --homeDirectory /home/roberto

# Change passwords
dsidm homelab account reset_password uid=alicia,ou=people,dc=guerzon,dc=net
dsidm homelab account reset_password uid=roberto,ou=people,dc=guerzon,dc=net

# Create empresores group
dsidm homelab group create --cn empresores --description "Business Owners"

# Add alicia to empresores
dsidm homelab group add_member empresores uid=alicia,ou=people,dc=guerzon,dc=net
dsidm homelab group members empresores

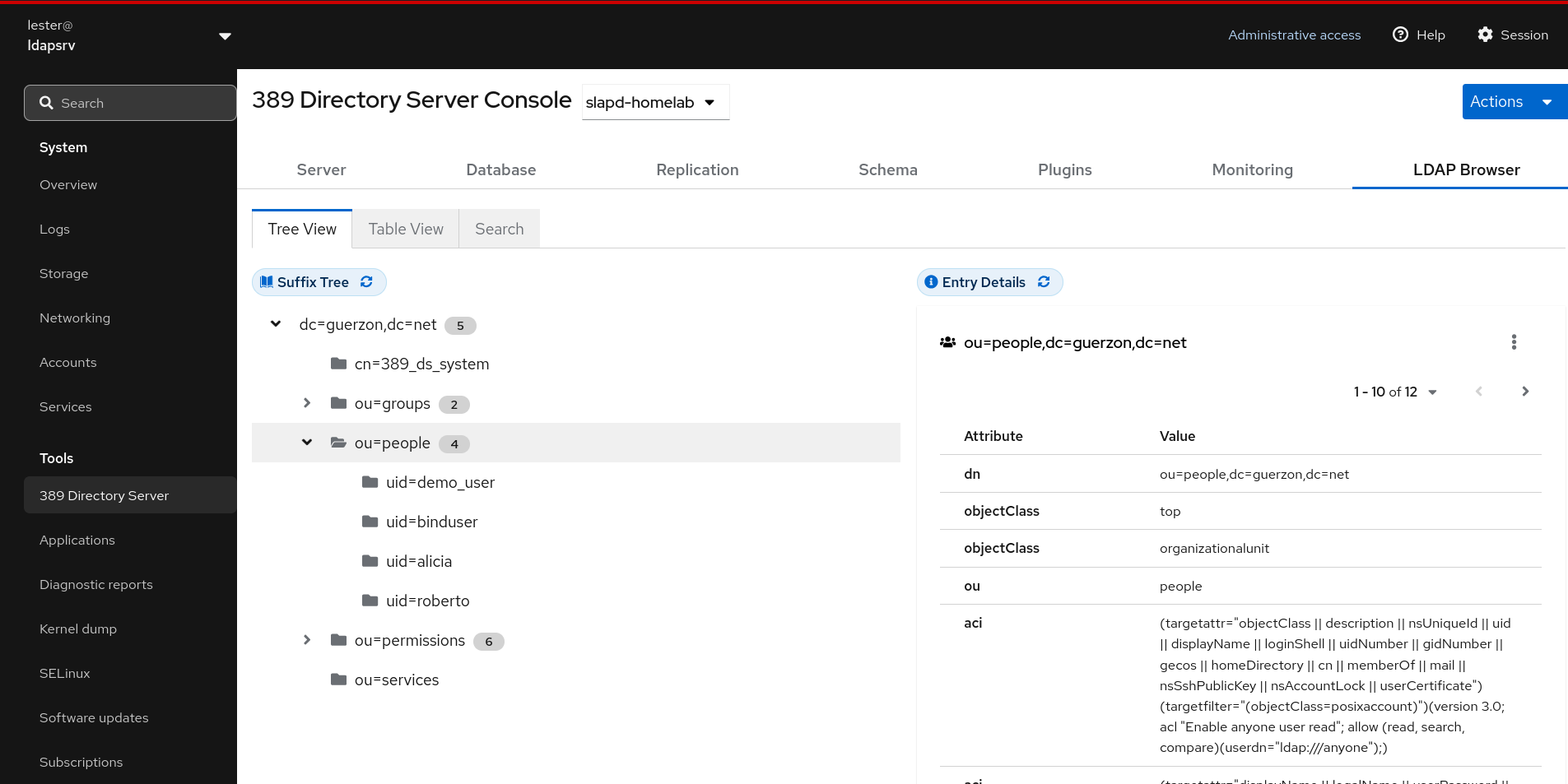

Take a look at LDAP browser:

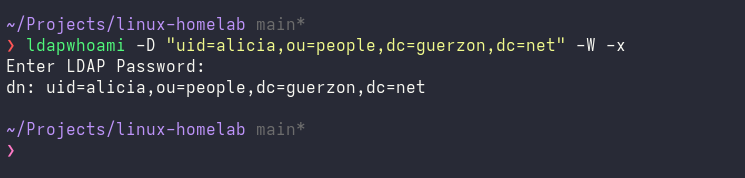

Try to login from the jumphost:

ldapwhoami -D "uid=alicia,ou=people,dc=guerzon,dc=net" -W -x

Plugins

# check status of memberOf (which makes lookups faster):
dsconf homelab plugin memberof status

# enable
dsconf homelab plugin memberof enable
dsctl homelab restart

# configure the plugin to search for all entries
dsconf homelab plugin memberof set --scope dc=guerzon,dc=net

# one-off task to mark alicia as a memberOf target (only needed since alice was created prior to enabling memberOf)
dsidm homelab user modify alicia add:objectclass:nsmemberOf
dsidm homelab user get alicia | grep memberOf

# run fixup, which will regenerate memberOf for everyone in the directory
dsconf homelab plugin memberof fixup dc=guerzon,dc=net
dsconf homelab plugin memberof fixup-status

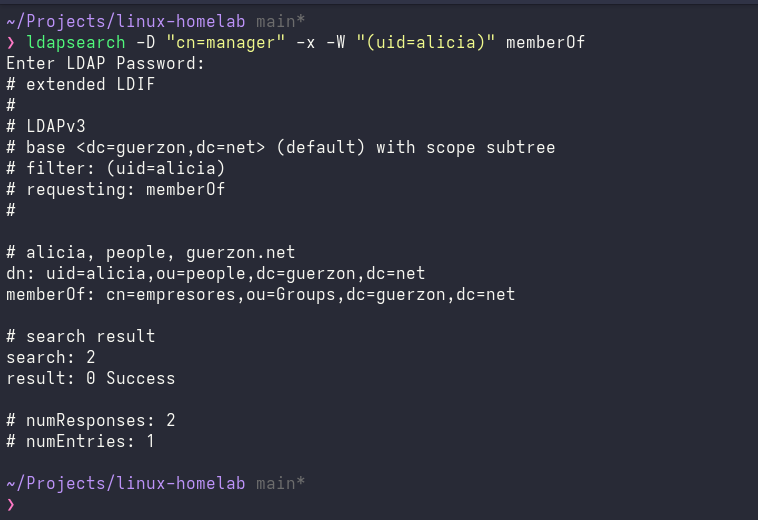

# verify alicia's membership:
ldapsearch -H ldaps://ldap.guerzon.net -x -D "cn=manager" -W "(uid=alicia)"

Useful commands for idm

dsidm homelab group remove_member \
    empresores uid=roberto,ou=people,dc=guerzon,dc=net
dsidm homelab user delete uid=roberto,ou=people,dc=guerzon,dc=net

LDAP client machine

Here, we configure generic to allow users to login using their LDAP credentials via SSH. The most common tool for this is sssd.

First, generate a config in the directory server:

# only members of empresores are allowed to login
dsidm homelab client_config sssd.conf empresores | tee /tmp/sssd.conf

Inspect the config. By default, this command allows access to the group empresores. Make modifications as necessary:

grep ldap_access_filter /tmp/sssd.conf
sed -i '/^ldap_uri/c\ldap_uri = ldaps:\/\/ldap.guerzon.net' /tmp/sssd.conf
chmod o+r /tmp/sssd.conf

Copy to generic:

scp ldapsrv:/tmp/sssd.conf generic:/tmp/

Configure SSSD

dnf install -y sssd
cp /tmp/sssd.conf /etc/sssd/
chmod 0600 /etc/sssd/sssd.conf

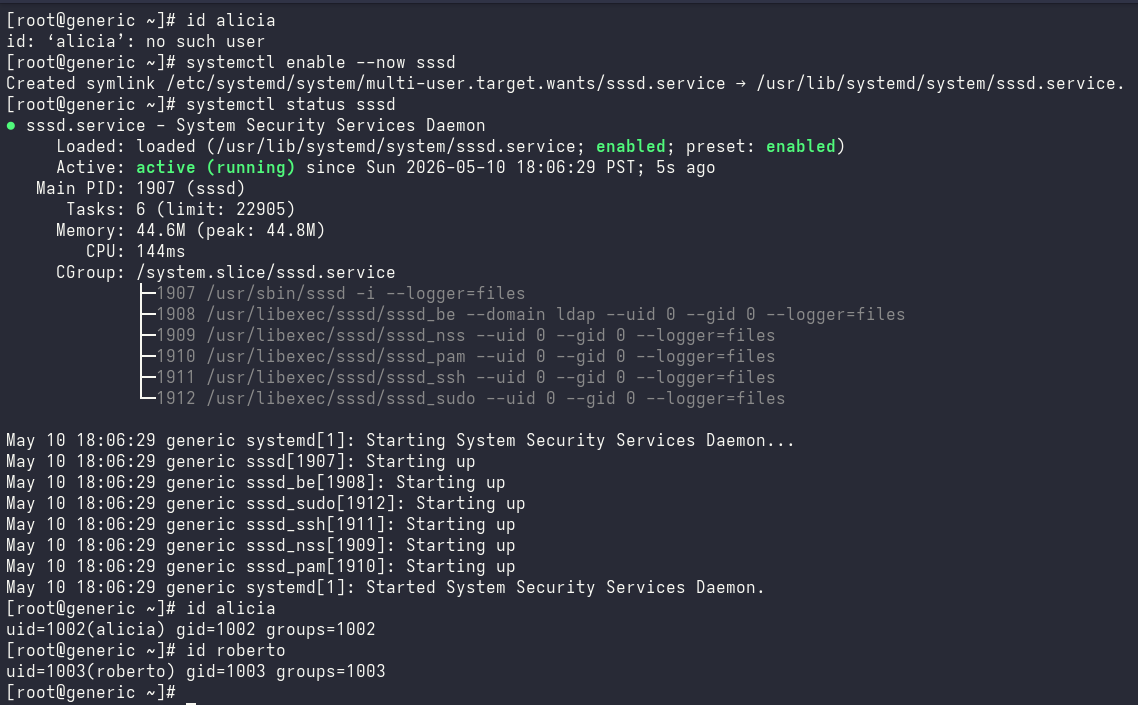

Check the existence of alicia and roberto, restart the sssd service, then check again:

This means those users are now known to this client with the help of SSSD.

Now, we have to configure authentication using PAM.

dnf install -y authselect-compat oddjob-mkhomedir
systemctl enable --now oddjobd
authselect select sssd with-mkhomedir

Test

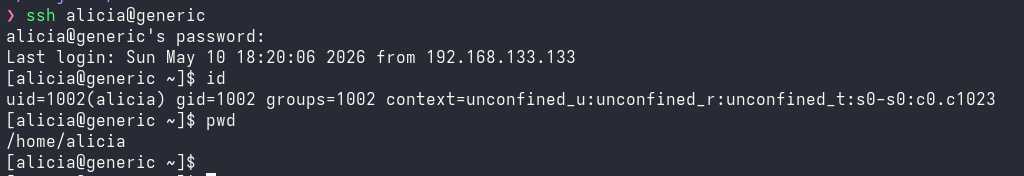

From the jumphost, test login to generic via SSH:

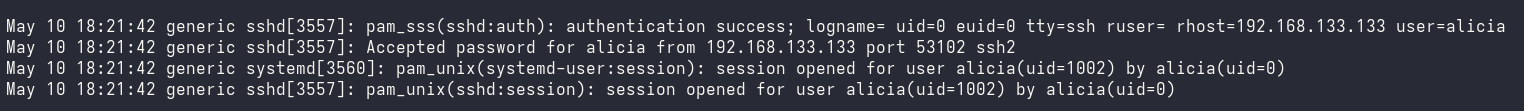

In the ldap client machine generic, we can see the logins in /var/log/secure:

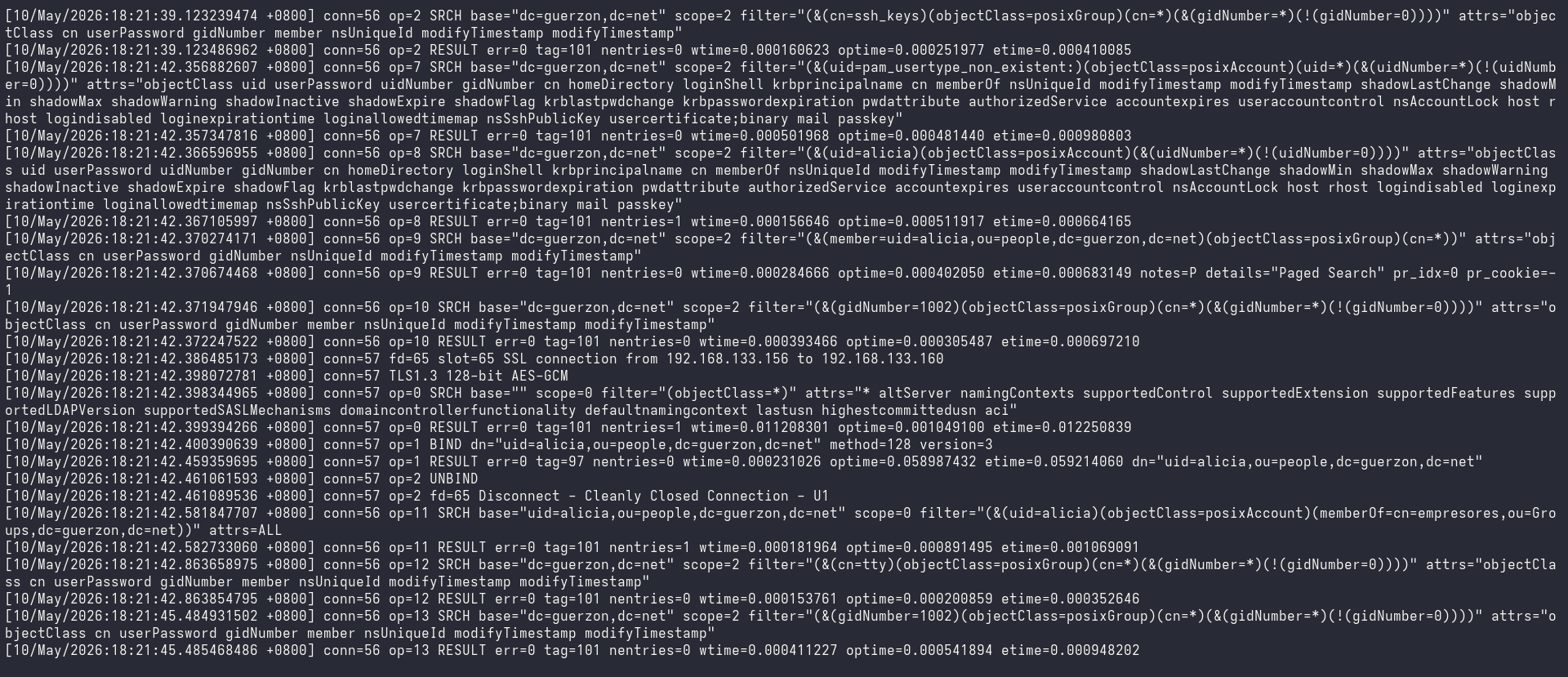

You will also see the queries happening in /var/log/dirsrv/slapd-homelab/access in ldapsrv:

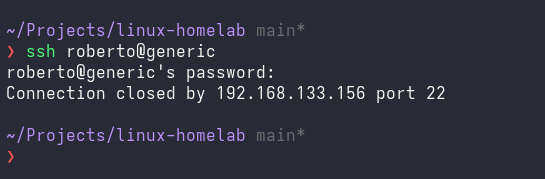

What if we try to login as roberto, who is not supposed to have access to generic (since he’s not a member of the empresadores group)?

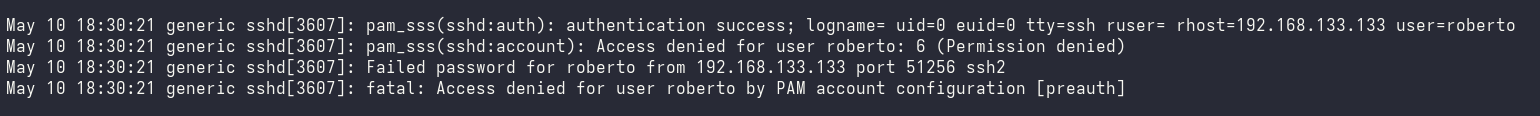

The command quickly returns after entering the password. And if you look at /var/log/secure again:

As you can see in the error, the authentication succeeds (ssh auth PAM module) but is soon denied by ssh account PAM module.

Conclusion

Now you have a working LDAP server running 389 Directory Server, and an LDAP client that allows user login using their LDAP credentials!
